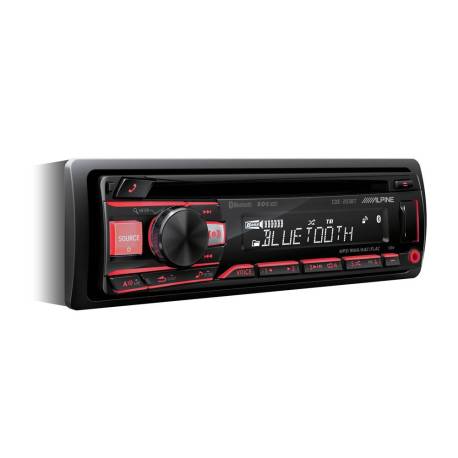

ALPINE CDE-203BT Radio Cd, Usb, Bluetooth, Multicolor

ALPINE CDE-203BT Radio Cd, Usb, Bluetooth, Multicolor

 Specificatii:

Tuner:
    Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
    Memory: Auto Memory

RDS:
    RDS Functions: AF, TA, TP, PTY, EON
    PTY (Programme Type) Display

BLUETOOTH®:
    Built-in BLUETOOTH® Module
    Hands Free Calling: HFP (Hands Free Profile)
    Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
    Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
    Phone Book Search
    Voice Dial Operation
    Auto Answer
    Call Waiting
    Call History Display: Phone Book Call, Dialled Call, Received Call
    Speech Volume Level Adjustment
    Hands-Free Phone Sound Setting
    Firmware Updatable
    Microphone Included

Made for iPhone® / iPod®

    Connection: USB connection (KCU-445i Required)
    Made for iPod/iPhone
    M.I.X. (Shuffle) Play: Track
    Repeat: All, Track
    Battery Charging

Disc Player

    Disc Type: CD Player
    Disc Playback Type: CD, CD-R/RW
    Music Playback: CDDA, MP3, WMA Playback
    M.I.X. Random Play
    Repeat: Track, All
    Playback Control: Play/Pause/Forward/Backward
    CD Text Display
    CD Text Name Search
    Multi Bit DAC
    Zero data Mute

USB Media Connection

    Front USB Connection
    MP3, WMA, AAC, FLAC Playback
    Folder Up/Down
    M.I.X. Random Play
    Repeat: Track, Album, All
    USB AOA (Android Open Accessory) 2.0

Sound Tuning

    Subwoofer Level Adjustment
    BASS ENGINE SQ: Level Control 0-6
    Subwoofer Phase Select: 0°/180°
    Subwoofer System Select
    High Pass Filter
    Low Pass Filter
    2V Voltage 2PreOuts
    10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
    3-band Parametric Equalizer

General

    Power Output: 4 x 50 W High Power Amplifier
    Display LCD: 14 Segments White LCD Display 1Line
    Control Type: Rotary Encoder Knob
    Variable RGB Illumination Buttons
    2 PreOuts (2V, Front + Subwoofer)
    Multi Bit DAC
    Front AUX Input (3.5mm mini jack)
    Steering Wheel Remote Control Ready
    -20dB Mute
    Remote Control Ready
    Clock
    Detachable DIN Trim Plate
    Detachable Face Plate
    Dimmer
    Power Antenna Lead
    Remote Turn-On
    Power Requirement: 12V.DC
    Pre Output Voltage (Before Clipping): 2V / 10k ohms
    Aux In: 1.4V / 10k ohms
    Maximum Mounting Angle: 30°
    Weight: 1.2 kg


Max Power Output Ratings

    Max Power Output: 4 x 50W

FM Tuner

    Tuning Range: 87.5 – 108.0 MHz

MW Tuner

    Tuning Range: 531 – 1,602 kHz

LW Tuner

    Tuning Range: 153 – 279 kHz

USB

    USB Requirements: USB 1.1/2.0
    Max. Power Consumption: 1,000 mA
    File System: FAT 16/32

Sound Tuning

    Subwoofer Level Adjustment: 0 to 15 dB
    Subwoofer Phase Setting: 0° or 180°
    High Pass Filter: Off, 80/100/120 Hz
    Low Pass Filter: Off, 80/100/120 Hz
    Bass Level Control Range: ±7 dB at 100Hz
    Bass Center Frequency: 60/80/100/120 Hz
    Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
    Treble Level Control Range: ±7 dB at 10 kHz
    Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
    Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
    Mid Level Control Range: ±7 dB
    Mid Center Frequency: 500/1k/1.5k/2.5k Hz
    Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)



    Power Requirement: 12V.DC
    Pre Output Voltage (Before Clipping): 2V / 10k ohms
    Aux In: 1.4V / 10k ohms
    Maximum Mounting Angle: 30°
    Weight: 1.2 kg

Dimensions

    Din Size: 1 DIN
    Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
