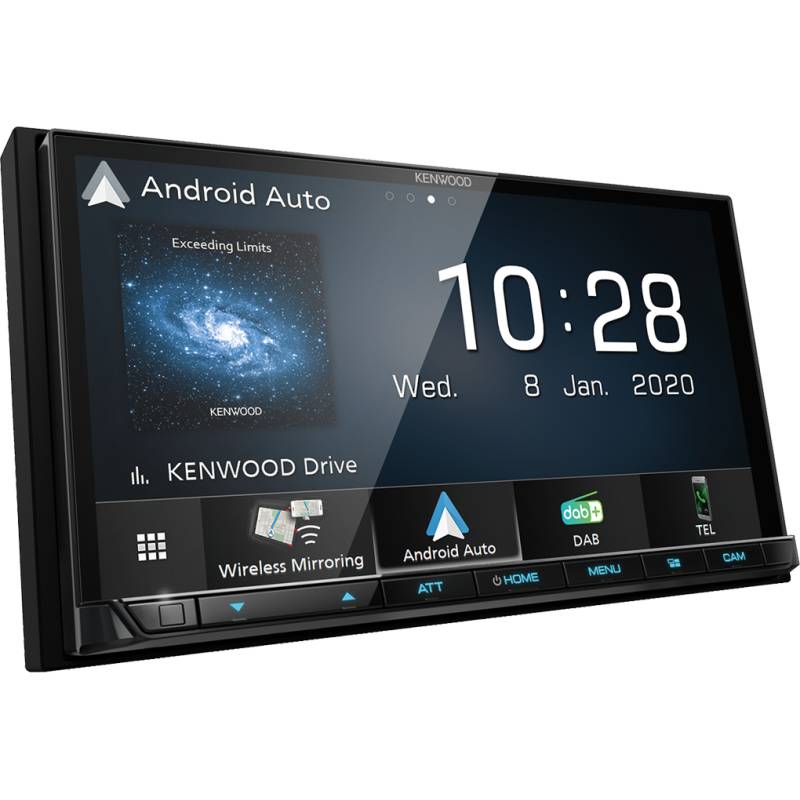

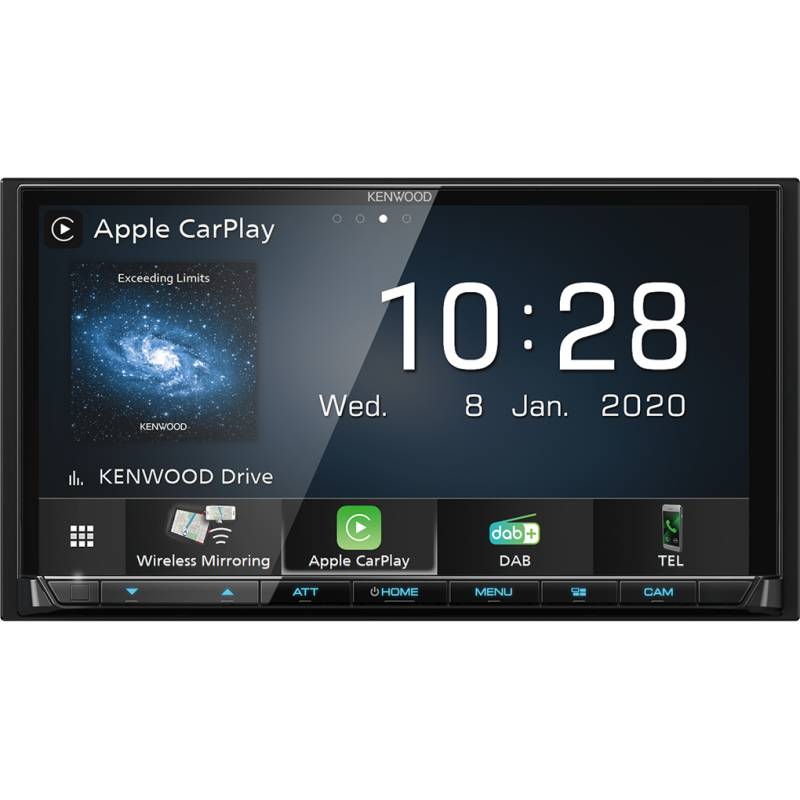

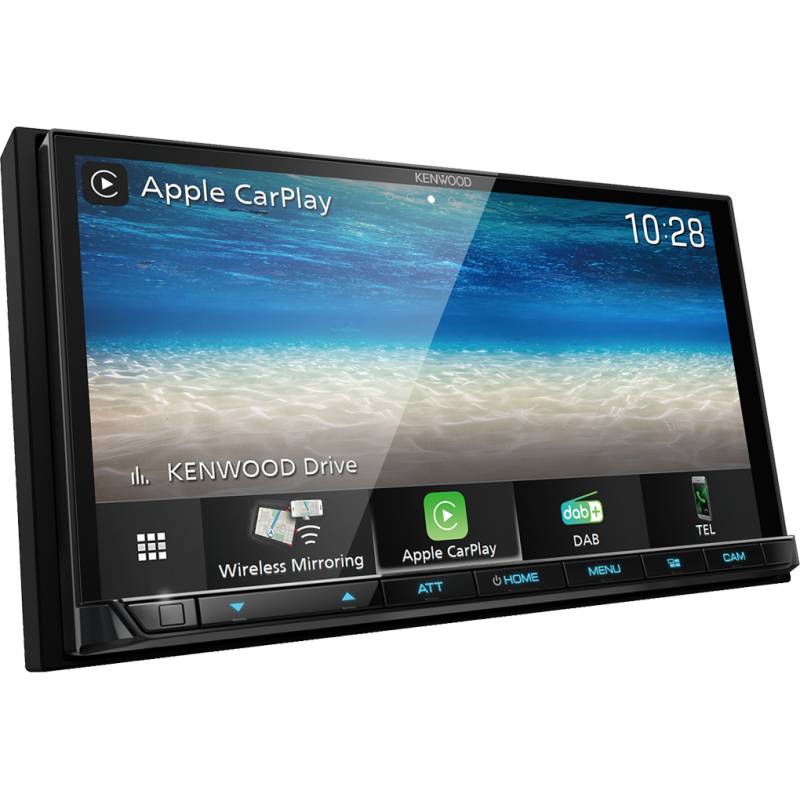

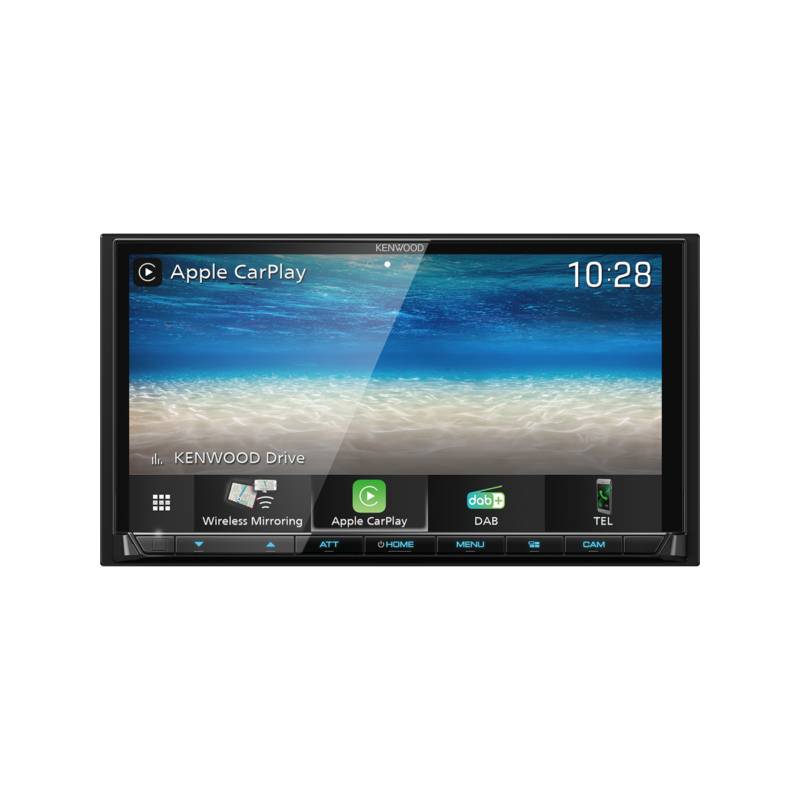

Sistem multimedia auto KENWOOD DMX-8020DABS 2DIN ecran 7", WiFi, Bluetooth, DAB

Sistem multimedia auto cu ecran de 7,0", WiFi, Bluetooth și radio digital DAB + încorporat.

DMX8020DABS
Pret:

3 919,00 lei

 Stoc limitat
    Transport gratuit *In cazul produselor mai grele de 10 kg, care depasesc limitele de distanta admise de curier sau dimensiunile normale (Lungime 60 cm/ Latime 50 cm/ Inaltime 30cm.), costul transportului va fi comunicat telefonic de catre operatorul HobbyMall.ro
    Garantie: 24 luni Garantie pentru persoane juridice: 12 luni. Produsele vandute pe site-ul HobbyMall.ro sunt originale si beneficiaza de garantie de la producator
Adauga in wishlist

3%

La cumpararea produsului Sistem multimedia auto KENWOOD DMX-8020DABS 2DIN ecran 7", WiFi, Bluetooth, DAB primesti 391 puncte loialitate. Cosul tau va totaliza 391 puncte care pot fi convertite intr-un voucher de 117,30 lei.

Sistem multimedia auto KENWOOD DMX-8020DABS 2DIN ecran 7", WiFi, Bluetooth, DAB

Caracteristici:

  • Noile aparate Kenwood cu Wi-Fi acceptă acum Apple CarPlay™ si Android Auto fără fir.
  • Wireless mirroring for Android – este o soluție revoluționară pentru afișarea și controlul fără probleme a aplicațiilor smartphone-ului pe ecranul mare fără cabluri. Funcția este disponibilă pe telefoanele Android compatibile. Unele caracteristici, aplicații și servicii nu sunt disponibile în fiecare regiune.
  • USB Mirroring for Android – vă permite să afișați și să controlați smartphone-ul dvs. Android pe ecranul aparatului prin USB. Vă puteți bucura de aplicațiile preferate pe un ecran mare, cu o calitate a sunetului impresionantă. Înainte de a porni True Mirroring, trebuie doar să instalați aplicația gratuită „Mirroring for KENWOOD” pe smartphone și să va conectați la aparat prin Bluetooth, precum și printr-un cablu USB.
  • Trei intrări de cameră – Puteți conecta până la 3 camere la acest aparat: o cameră marsarier cu linii de ghidaj, K și o cameră pentru unhiul mort (stânga/dreapta). Intrarea AV poate fi alocată ca a treia intrare de camera. Setarea tipului de cameră și comutarea afișajului între 3 camere pot fi operate cu ușurință prin intermediul ecranului mare al aparatului.
  • Ecran tactil WVGA de 7,0″
  • Wifi încorporat
  • DAB+ Radio digital și receptor FM/AM
  • Bluetooth Hands Free & Audio Streaming
  • Compatibil cu USB și fără fir pentru Apple CarPlay®
  • Compatibil cu USB și fără fir pentru Android Auto™
  • Mirroring  pentru Android prin USB și fără fir
  • Pana la 3 intrări de cameră
  • 3 ieșiri RCA de mare putere (5V) (față/spate/sub)
  • Compatibil cu High Res Audio
  • Digital Sound Processor, Time Alignment & Egalizator 13 benzi
  • Port USB 2.0 de mare viteză.

Sistem multimedia auto KENWOOD DMX-8020DABS - specificatii tehnice:

General Features

DIN Size2 DIN
Security Code Function ( user set)Yes, Set by user
Smooth GUIYes
Selectable GUI Background WallpaperYes
Key IlluminationVariable color
Installer MemoryYes
Back-up MemoryYes
Attenuator with Smooth Volume ReturnYes
Optional IR remote controllerYes, (KCA-RCDV331)
Digital Clock (24H)Yes
Built-in BluetoothYes
DAB Tuner Built-inYes
Works with Apple CarPlayYes
Works Wireless with Apple CarPlayYes
Works with Android AutoYes
Works Wireless with Android AutoYes
Android USB MirroringYes
Wireless Mirroring for AndroidYes
Firmware upgreadableYes
HDMI inputfor video playback
Dashcam LinkYes
GPS inputGPS & Glonass Antenna included

Monitor Features

Screen Type7,0″ Wide VGA
Display Mode3 Mode (Full(default)/Auto/Normal)
Screen Adjustments► Noon & Night Memory.
► Brightness.
► Tint.
► Colour.
► Contrast.
► Black Level.
► Backlight.
Dimmer functionManual/Sync
Dimmer LevelSync / On / Off
Visual Source ModeMirorring / CarPlay / Android Auto.
Touch PanelCapacitive
Display TypeGlare
Display filmAnti-Fingerprint / Anti-Reflection / Anti-Glare)
LCD viewing angle control“0” (Default) / “-1” / “-2” / “-3”
NTSC/PAL judgeYes (Auto)

Multimedia GUI Features

Menu text22 languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Chinese (Simplified)
► Chinese (Traditional)
► Thai
► Turkish
► Arabic
► Persian
► Hebrew
► Greek
► Malaysian
► Indonesian
► Polish
► Czech
► Hungarian
Software updates (SoC)via USB
Graphics TypeGraphics
Spectrum AnalyzerYes
Demonstration ModeYes
Top Menu CustomizeYes
Opening Screen Typestandard
Background CustomizePreset x6:
► Static x4.
► Colour Customize x1.
► Sync Album Art x1.
► USER x2.
Wallpaper colour changeYes
Multi WidgetsMulti (up to 4), Clock, Weather & Photo Frame Widget
Picture in pictureYes
AnimationYes
Screen CaptureYes
R-CAM interruptYes
R-CAM Caution On Screen DisplayYes
R-CAM Parking Guide LinesYes
Front Camera InterruptionYes
DashCam ControlYes
Rapid charge indicatorYes

Network & Wifi features

WiFi built-inbuilt-in
Frequency RangeDual Band (2.4GHz / 5GHz)
IEEE standard802.11a/b/g/n/ac
Wifi connection for Apple CarPlayYes
Wifi connection for Android AutoYes
Wifi connection for Android MirroringYes

Tuner Features

Station SelectManual / Preset (List)
Tuner TypeLithio
FM(RDS) + AM(MW/LW) TunerYes
Tuner Presets (FM/AM)20 Presets (15FM / 5AM)
Preset memory w/o back-up powerYes
Tuning mode
Up/Down Seek/ScanYes
Automatic Memory Entry (AME)Yes
FM Stereo / Mono SelectorYes
Radio Data SystemYes
Radio Text PlusYes
Traffic InformationYes
Local searchYes
AF RegionalSelectable: AF/AF Reg/OFF
Auto TP searchYes
Enhanced Other Networks Function (EON)Yes
Program Type Function (PTY)Yes

CE DAB tuner features

DAB+ tuner built-inYes
Digital Radio Certification MarkYes
Intelligent seekYes, (Service, Ensemble & Component)
Ensemble seekYes
Tuning mode / Seek modeAuto1/Auto2/Manual
Service preset15 ch * 1 bank presets,
Service list by alphabet orderYes
Preset listYes
Alphabet SearchYes
Related serviceYes
Traffic InformationYes
DAB priorityYes
DAB-DAB/DAB-FM auto switchYes
Seamless DAB-FM blendingYes
DLS (Dynamic Label)Yes
PTY (Programme Type) searchYes
PTY (Programme Type) watchYes
Announcement Switching (ASW) SelectYes
TMC (Traffic Message Channel) supportYes
DMB Audio (Digital multimedia broadcasting)Yes
Soft linkingYes
Antenna power supply on/off switchYes

Bluetooth General Features

ModuleMurata
Hands Free Profile (HPF)V1.7
Hands Free Profile with High Sound QualityHFP V1.7
2 Phones Switchable Hands FreeYes
2 phones fulltime connectionYes
Audio Streaming (A2DP)Yes, (SBC/AAC)
High Quality Audio StreamingSBC/AAC
Max num. of regist. units for A2DP5 units
Serial Port Profile (SPP)Yes
Simple Secure Pairing (SSP)Yes
Phonebook Access Profile (PBAP)Yes
Audio/Video Remote Control Profile (AVRCP)Yes, V1.6
Multi Profile SupportYes
iPhone & Android automatic pairing via USBYes
KENWOOD Remote App Ready
KENWOOD Music Mix SupportYes
Catchphone / Call WaitingYes
Private modeYes
Alphabet Search (Phonebook)Yes
Noise CancellerYes
Echo CancellerYes
Phone device status displayYes
Audio device status displayYes
Signal strength displayYes
Remaining battery displayYes
High-quality noise canceling microphoneIncluded (rear wired)

CE_Playable Audio file

AAC (*.m4a) files are playableUSB
AAC (*.aac) files are playableUSB
MP3 files are playableUSB
WMA (.wma) files are playableUSB
WAV (.wav) files are playableUSB
FLAC files are playableUSB

CE_Playable Video file

MPEG1/2 files are playableUSB
MPEG4 files are playableUSB
WMV files are playableUSB
H.264 files are playableUSB
mkv files are playableUSB
JPEG files are playableUSB
BMP files are playableUSB
PNG files are playableUSB

USB Features

USB terminalYes, Rear USB 2.0 (Full Speed)
USB Type2.0 High speed
USB extension cable supplied2x 1 meter
Drive ChangeYes
Works with Android AutoYes
USB 1 wire Mirroring for AndroidYes
Tag Information DisplayYes
Album Art DisplayYes
Repeat/Scan/Random searchYes
Repeat PlayFolder/File/All
Random playFolder
Category searchYes
Link SearchYes
Resume playYes
Time code displayYes

iPod Features

Made for iPod & iPhone *Yes
USB Direct Control (Audio, 1 wire, Lightning-connector)with optional cable KCA-iP103
Album art supportYes
Music library searchYes
Alphabet searchYes
Skip searchYes
iPod Accessory Protocol (iAP)iAP2
iTunes Radio Appyes iAP2
Works with Apple CarPlayWireless or Wired via USB
Reverse browsingYes
Voice Control using Siri.Yes
Bluetooth Auto Paring for iPhoneYes
Battery charge + power controlYes
* Always update to latest Apple firmware

Audio features

Max. Output Power (MOSFET Power IC)4 x 50W
Pre-out3RCA: Front/Rear/Subwoofer
Pre-out Output Level5V
Volume OffsetYes
2 Zone ControlYes
Balance/Fader ControlYes, (via DSP)
Loudness ControlYes, By DSP
Bass BoostYes, (Via DSP)
Att.(-20dB) with smooth Volume ReturnYes
EqualizerYes, 13 Band Graphic EQ
Digital Sound Processor (DSP)Yes
Digital Time Aligment (DTA)Yes
Beep On/OffYes

Multimedia DSP Features

Car type controlOff / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
Speaker Size & Location ControlYes
X’over network3-Way / 2-way X’over / HPF / LPF
Listening postion control / Time AlignmentYes
Equalizer typeGraphical
Equalizer13-Bands
Equalizer presets / User set8 presets / 4 User set
Zone Control1 Zone / 2 Zone
Balance & Fader ControlYes
Source Volulme Offsetsource independent
Sound Effects► Bass Boost
► Supreme
► Loudness
► Realizer
► Drive Equalizer
► Stage EQ
► Space Enhancer
Audio Setup MemoryYes

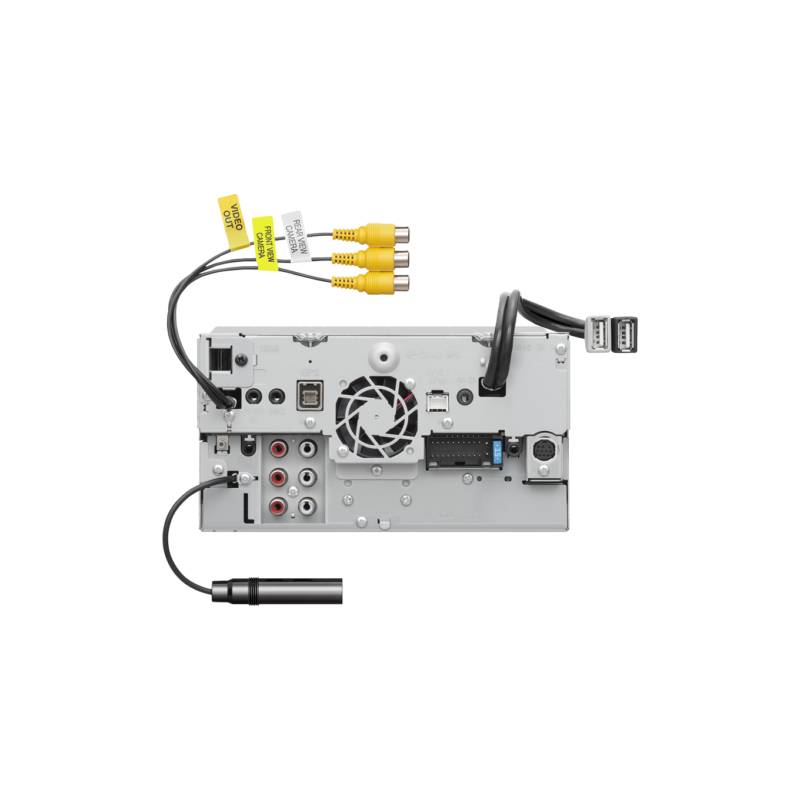

Connectivity

iPod direct controlYes
USB interface2 x USB 2.0 (pigtail)
OEM Wired Remote Control readyYes, Optional interface needed
OEM Display Control readyYes, Optional interface (KIM) needed
Programmable OEM Steeringwheel Remote FunctionYes
Display input/output controlYes
DC-CordMitsumi to ISO
Parking sensor (handbrake) wireYes
Power Control (P.CON) wireYes
2-way (Tel/Navi) mute wireYes
Dimmer control wireYes
Speedpuls input wireYes
AV-Input1x mini-jack (selectable: AV-in / Camera-in)
AV OutputVideo: RCA / Audio: mini-jack
Available AV-Out sourceAV-in / Off
Reverse sensor wireYes
Rear View Camera InputDedicated RCA Video-in
Front View Camera Inputselectable: Front / Dash-Camera-in
Camera inputsup to 3 camera’s
Multi View Camera Control LineYes
Dashcam LinkYes
Amplifier pre-out3 x RCA: Front/Rear/Subwoofer
3rd Party TV Control (Mini-Jack)Yes
HDMI inputType A
GPS Aerial InputHRS GT5-1S connector
FM Antenna InputJASO connector
DAB Aerial inputSMB connector
External microphone input3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz – 108MHz (50Khz step)Yes
FM Usable Sensitivity0.8μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity1.6μV/75ohm (S/N 15.2dBf)
FM Frequency Response30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)65dB
FM Selectivity(DIN)over 80dB (±400kHz)
FM Stereo Separation (1kHz)45dB
MW range: 531kHz – 1611kHz (9kHz step)Yes
MW Usable Sensitivity45μV
LW range: 153kHz – 279kHz (9kHz step)Yes
LW Usable Sensitivity25μV

DAB Tuner specifications

Band III – Frequency range174.928 MHz – 239.2MHz
ModeI, II, III, IV
Sensitivity– 100dBm
Signal to noise ratio90dB
Audio formatMPEG1 Audio Layer II, MPEG4 HE-AAC v2
DAB Aerial Connector TypeSMB
Output Voltage14.4V (11V to 16V allowable)
Maximum Current< 100 mA

Bluetooth specifications

TechnologyBluetooth V5.0
Frequency2.402 – 2.48 GHz
Output power+4dBm(max), power class 2
Maximum rangeLine of sight approx. 10 meter
Handsfree profile (HFP)Yes, V1.7
Serial port profile (SPP)Yes
Advanced audio distribution profile (A2DP)Yes
Audio CodecSBC/AAC
Audio/Video remote control profile (AVRCP)Yes, V1.6
Phonebook access profile (PBAP)Yes
Multi Profile SupportYes

USB Specifications

USB Version compatibilityUSB 2.0 High Speed
File SystemFAT 16/32 / exFAT / NTFS
Maximum Supply current1500mA
D/A Converter24/32 bit
Video DecoderMPEG1/MPEG2/MPEG4/WMV/H.264/MKV
Audio DecoderMP3/WMA/AAC/WAV/FLAC/Vorbis
S/N Ratio98.5 dB (1kHz)
Dynamic Range89dB

Audio Specifications

Maximum Power50W x 4
Output Power (DIN45324,+B=14.4v)22W x 4
Output frequency band20Hz ~ 88kHz
Preout Level5000mV / 1kOhm,
Preout Impedance≤ 300Ohm
Speaker Impedance4Ohm ~ 8Ohm

DSP Specifications

Frequency band62.5/100/160/ ~ /6.3k/10k/16k Hz
Equalizer Gain–9db ~ +9db
Time Alignment0 — 610cm(1 cm step)
Speaker type – Center► NONE
► 40mm X 70mm
► 5cm
► 10cm
► 13cm
► 16cm OVER
Speaker type – Front► O.E.M.
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4″ x 6″
► 5″ x 7″
► 6″ x 8″
► 6″ x 9″
► 7″ x 10″
Speaker type – Rear► NONE
► O.E.M
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4″ x 6″
► 5″ x 7″
► 6″ x 8″
► 6″ x 9″
► 7″ x 10″
Speaker type – Sub woofer► NONE
► 16cm
► 20cm
► 25cm
► 30cm
► 30cm over
2-Way X’over / Front/Rear (HPF) / FrequencyThrough, 30/40/50/ ~ /220/250 Hz
2-Way X’over / Front/Rear (HPF) / Slope-6/-12/-18/-24 (dB/oct)
2-Way X’over / Subwoofer (LPF) / Frequency30/40/50/ ~ /220/250 Hz, Through
2-Way X’over / Subwoofer (LPF) / Slope-6/-12/-18/-24 (dB/oct)
3-Way X’Over / High Pass Filter FrequencyThrough, 30/40/50/ ~ /220/250 Hz
3-Way X’Over / High Pass Filter Slope-12/-18/-24 (dB)
3-Way X’Over / Low Pass Filter Frequency30/40/50/ ~ /220/250 Hz, Through
3-Way X’Over / Low Pass Filter Slope-12/-18/-24 (dB/Oct
Subwoofer Level-50dB ~ 10dB
Car type control► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUV
► Passenger Van

Video Specifications

Color System of External Video InputNTSC/PAL
External video input level (mini-jack)1 Vpp / 75 Ohm
External audio max. input level (mini-jack)2 Vpp / 25 kOhm
Video input level (RCA)1 Vpp, 75 Ohms
Video Output Level (RCA)1 Vpp / 75 Ohm
Audio Output Level (mini-jack)0.9 Vpp / 10 kOhm
HDMI – VGA input resolution640x480p @59.94Hz/60Hz
HDMI – 480p input resolution720x480p @59.94Hz/60Hz
HDMI – 720p input resolution1280x720p @59.94Hz/60Hz
HDMI – input Audio type16/20/24-bit Linear PCM

Monitor Specifications

Screen size (Diagonal)6.95 Inches Wide
Screen Size (WxH)156.6 x 81.6mm
Display systemTransparent TN LCD Panel
Drive systemTFT Active Matrix System
Number of Pixels1152000pixels (800(H) x 480(V) x RGB)
Effective pixels99.99%
Pixel arrangementRGB Striped
Back lightingLED (Light Emitting Diode)

General Specifications

Operating voltage14.4V (11 ~ 16V Allowable)
Dimensions (WxHxD)178 x 100 x 155mm
Weight1700 gr.

Accessories

Release keys2 pieces
EscutcheonYes
Installation SleeveYes
DC cord (Mitsumi to ISO)20 cm
usb extension cable2 pieces, 1 meter
GPS antennawith 3.5 m cable
Handsfree Microphonewith 3 m cable
Multi-Language Instruction Manual IncludedQuick-Guide + Instruction manual
Manuals DownloadableYes
Evaluare:
0 1 2 3 4
0/5
Bazata pe 0 review-uri
Filtre:
0 1 2 3 4 (0)
0 1 2 3 0 (0)
0 1 2 0 1 (0)
0 1 0 1 2 (0)
0 0 1 2 3 (0)

Livrare prin curier rapid

Livrăm coletele prin rețeaua de curierat rapid Fan Courier, în toată Romania.

Livrarea produselor se face în 24-72 ore de la confirmarea comenzii în zonele de acoperire ale Fan Courier. Pentru localitățile care nu se află în aria de acoperire, Fan Courier va percepe o taxă suplimentară ce poate fi verificată aici. Taxa de transport suplimentară va fi comunicată telefonic de unul din operatorii HobbyMall.ro în momentul confirmării comenzii.

Costul livrării:

  • pentru comenzi cu o valoare mai mică de 299 lei taxa de transport este de 17 lei.
  • pentru comenzi cu o valoare mai mare de 299 de lei, livrarea este gratuită, în limita a 10 kg/colet.

Pentru coletele care depăsesc dimensiunile standard admise de Fan Courier (Lungime 60 cm/Lățime 50 cm/Înălțime 30cm sau coletele care depăsesc 10kg), costul transportului va fi comunicat telefonic de către operatorul HobbyMall.ro în momentul confirmării comenzii, dacă va fi cazul.

Ridicare de la sediul Hobby Mall

Puteţi ridica comenzile de la sediul nostru din Bd. Theodor Pallady nr. 287, cladire 4A, etaj 1, sector 3, București, de luni până vineri, în intervalul orar 09:00-18:00.

Nu se pot ridica de la sediul HobbyMall.ro coletele mai mari de 10 kg sau cu dimensiuni mai mari de 60cm X 50cm X 30cm (Lungime X Lățime X Înălțime).

Nu se percepe taxă de transport pentru comenzile ridicate de la sediul nostru.

Modalități de plată:

  • Plata online cu cardul de credit/debit
  • Plata online în rate cu cardul Avantaj (emis de Credit Europe Bank)
  • Plata cu cardul bancar, la sediul nostru (POS ING Bank)
  • Plata prin virament bancar (OP). Pentru această modalitate de plată vă rugam să solicitați trimiterea facturii proforme. Livrarea se va face dupa confirmarea efectuării plății
  • Plata numerar, la sediul nostru
  • Plata la livrare, cu numerar, ramburs
